PIC --> PIC18F452 and 3COM 3C509B Ethernet ISA card --> How to assemble 3C509b18f452.asm (pic3com) with gpasm on MS\Windows

How to assemble 3C509b18f452.asm (pic3com) with gpasm on MS\Windows


1. Installation of gputils-win32 :

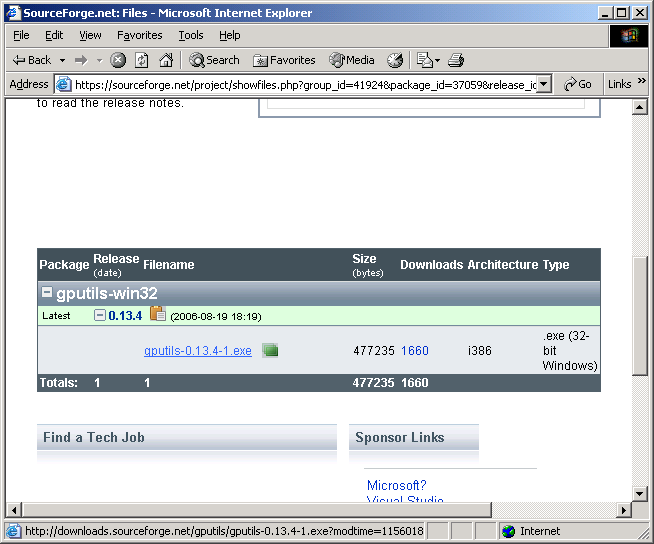

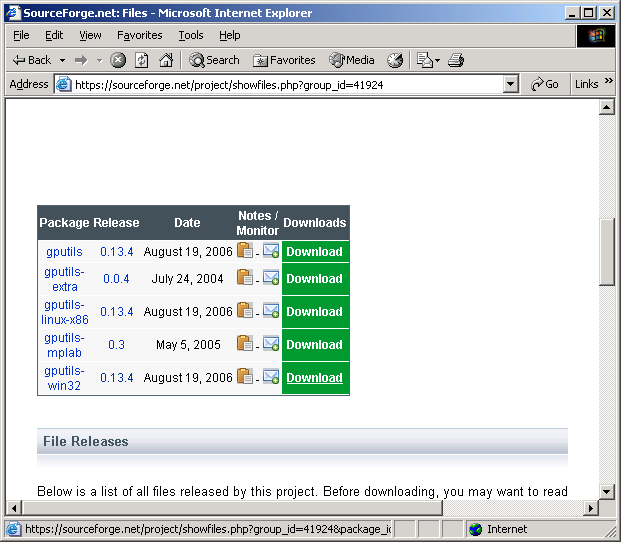

Download gputils-win32 from the gputils website.

gputils-win32 download 1 gputils-win32 download 2

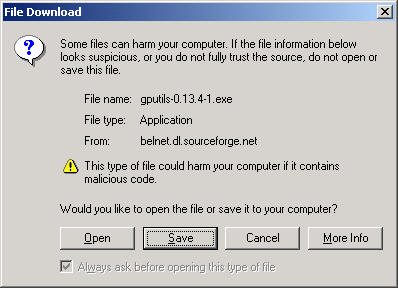

Select "open" to install gputils

gputils-win32 select open

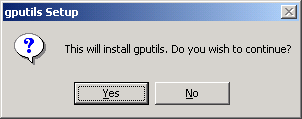

And start installation

gputils-win32 Install Yes

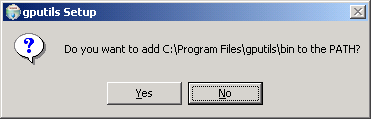

When the installation program ask "Do you want to add xxx to the PATH", say "Yes".

Do you want to add xxx to the PATH

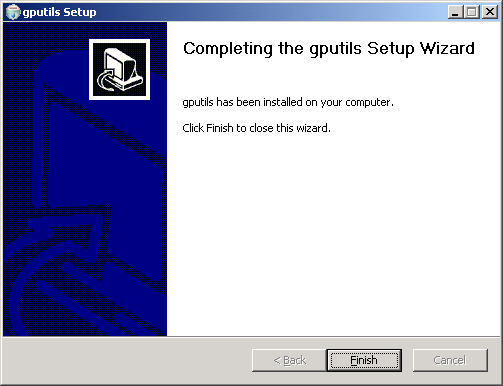

And finish the installation.

gputils-win32 finish installation

2. Download and extract the pic3com source

Download the pic3com source here and extract it somewhere. If you don't know how to extract it, you can use 7-zip for it.


3. Create a HEX-file with gpasm

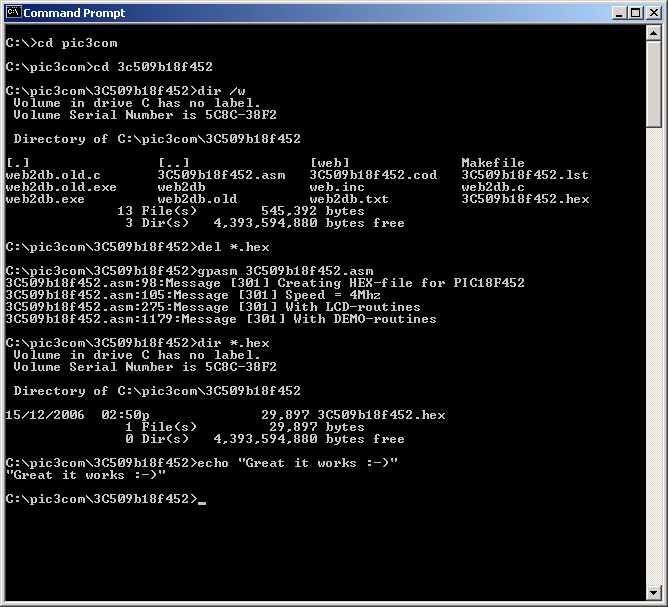

Open a command-prompt and go to the directory (folder, map) where you have extracted the pic3com source. Type gpasm 3C509b18f452.asm.

gpasm 3C509b18f452.asm
